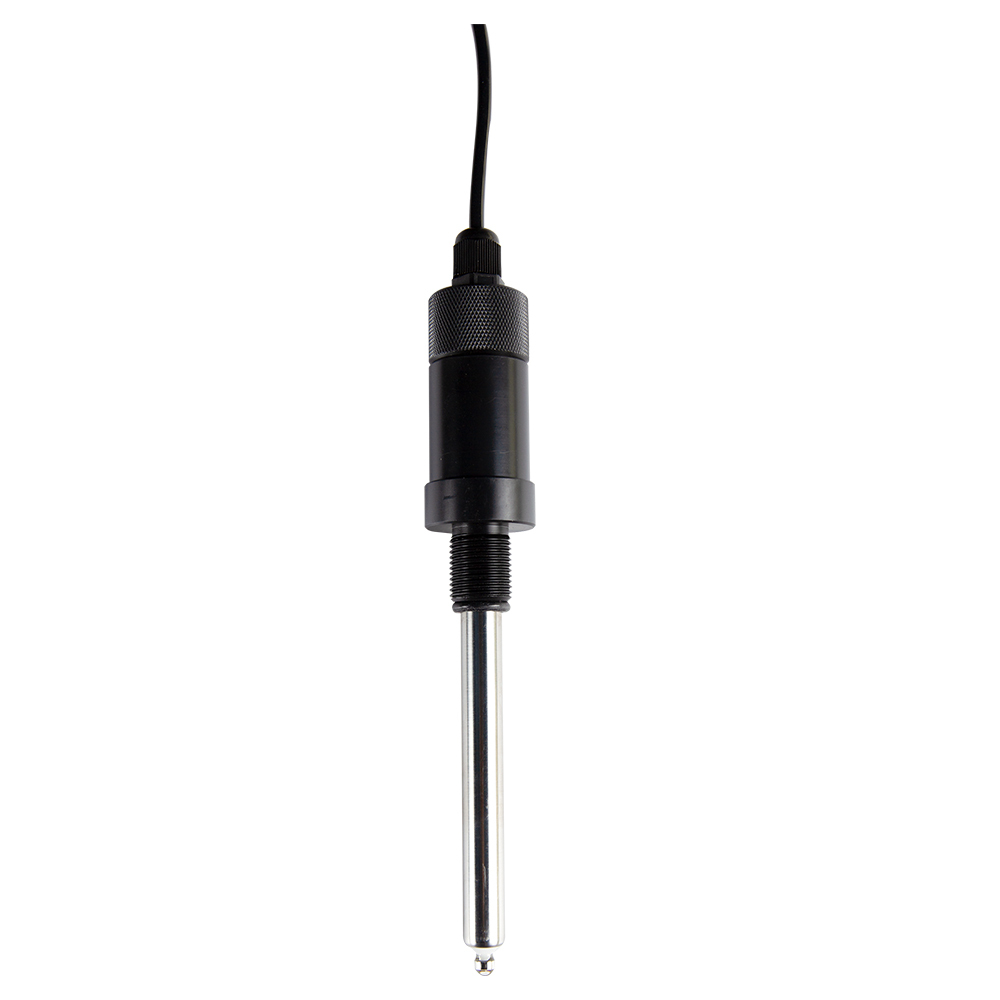

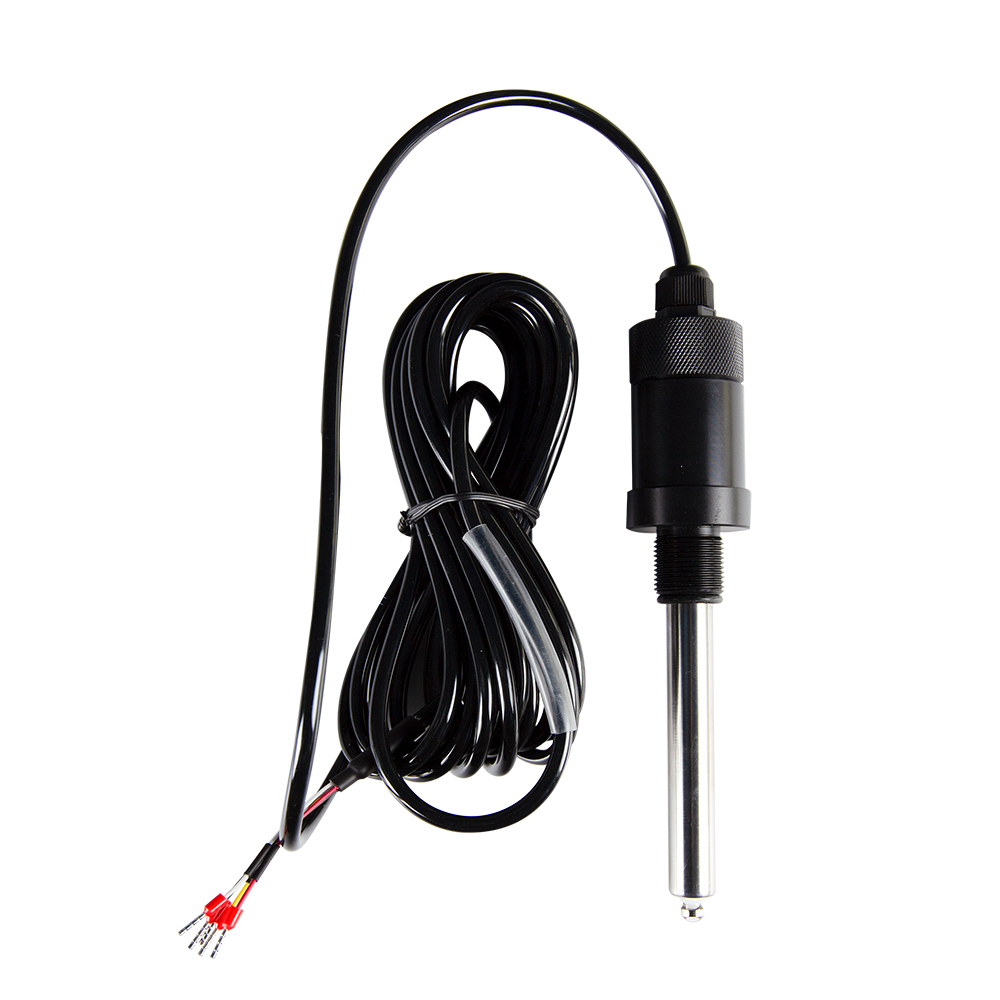

PPS Chlorine Sensor

Name: PPS Chlorine Sensor
Brand: AQUADAX SOUTH ASIA PRIVATE LIMITED (OPC)
Price: 30000 INR
Availability: InStock

Price 30000 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

PPS Chlorine Sensor Specification

Resistance
100

Output
Analog Voltage Output

Theory
Chlorine Gas Electrochemical Principle

Type
Electrochemical Sensor

Accuracy
2% F.S.

Operating Voltage
5V DC

Output Voltage
0.4V - 2V

Compensated Temperature
0C to 50C

Storage Temperature
-20C to 60C

Operating Temperature
-20C to 50C

Humidity Range
15% to 90% RH (non-condensing)

Pressure Range
Standard Atmospheric Pressure

Expected Lifetime
2 years (in air)

Weight
Approx. 8g

Sensor Pin Configuration
3-pin

Recovery Time
60 seconds

Dimension
20mm (Dia) 16.5mm (Height)

Housing Material
PPS Plastic

Response Time
30 seconds

Measuring Range
0-20 ppm (parts per million)

PPS Chlorine Sensor Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash Advance (CA)

Delivery Time
10 Days

Main Domestic Market
All India

About PPS Chlorine Sensor

PPS Chlorine Sensor that our well-distinguished enterprise puts forward is engineered to be utilized for the measurement the amount of chlorine in a solution. Ideal for diverse industrial applications, this type of sensor can be utilized for process water, drinking water, and industrial water treatment. The proposed sensor comes with long cord to put deeply it into the water to measure accurate amount of chlorine. Easy to use, highly efficient, and low maintenance, clients can get PPS Chlorine Sensor at market justified prices.

Fast and Reliable Chlorine Detection

Engineered for efficiency, the PPS Chlorine Sensor delivers rapid chlorine gas measurements with a response time under 30 seconds. Its electrochemical sensing principle ensures consistently precise output, making it a trusted choice for critical industrial monitoring. Designed for harsh atmospheric conditions, the sensor maintains accuracy across varying temperature and humidity levels.

Durable Construction and Practical Design

Built using high-grade PPS plastic and steel, the sensor is both lightweight (approx. 8g) and robust, capable of withstanding challenging industrial environments. Its compact dimensions allow for easy integration and maintenance, while the three-pin configuration ensures straightforward installation and stable connectivity.

Versatile Industrial Applications

This sensor is tailored for diverse industrial contexts, offering reliable chlorine detection for process control, safety monitoring, and environmental compliance. Its compatibility with standard LCD resolution outputs and analog voltage range provides flexibility for integration with a range of monitoring systems and control panels.

FAQ's of PPS Chlorine Sensor:

Q: How does the PPS Chlorine Sensor detect chlorine gas?

A: The sensor uses an electrochemical principle to detect chlorine concentration. When chlorine gas comes into contact with the sensor, a chemical reaction produces an electrical signal, which is then converted to an analog voltage output (0.4V to 2V) for measurement.

Q: What benefits does the PPS Chlorine Sensor provide for industrial applications?

A: This sensor offers fast response times, high accuracy (2% F.S.), and a long expected service life of two years. Its broad operating range makes it ideal for continuous monitoring in demanding industrial environments, enhancing safety and regulatory compliance.

Q: When should I calibrate or replace the sensor?

A: Calibration intervals depend on usage and environment, but periodic calibration is recommended for optimum accuracy. The sensor features an expected lifetime of two years in air, after which replacement is advised for continued performance.

Q: Where can the PPS Chlorine Sensor be installed?

A: It can be integrated into various industrial systems that require chlorine monitoring, such as gas detection panels, safety alarms, and process controls. The sensor's compact design facilitates installation in space-constrained environments.

Q: What is the operating process for this chlorine sensor?

A: Once connected to a power source (5V DC), the sensor continuously monitors chlorine levels and outputs corresponding analog voltage signals. These can be read by display modules or integrated into existing control and monitoring systems.

Q: How should the sensor be stored and handled before installation?

A: Store the sensor in a non-condensing humidity range (15%-90% RH) and within a temperature range of -20C to 60C to maintain its integrity. Handle with care to prevent mechanical or electrical damage prior to use.
