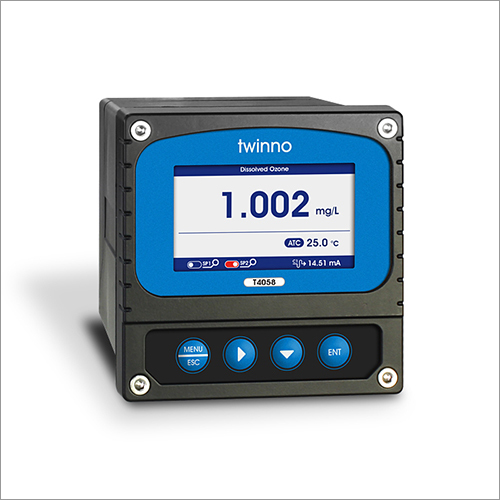

Single Parameter Transmitter Controller

Get a Price/Quote

MOQ : 100 Pieces

Single Parameter Transmitter Controller Specification

Current
<500 mA

Measuring Range
Depends on sensor type (e.g. pH: 014 pH, ORP: 2000 mV, Conductivity: 02000 S/cm, etc.)

Protection Level
IP65 (front panel)

Installation Type
Panel Mountable

Output
Analog 420 mA, Relay, RS485 (MODBUS)

IP Rating
IP65

Sensor Type
Electrochemical (electrode based, contact sensors)

Mounting Type
Panel Mount

Phase
Single Phase

Switch Type
Relay (potential free contact)

Frequency
50-70 Hertz (HZ)

Features
Programmable control, selectable sensor type, high/low alarm output, calibration function

Usage & Applications
Industrial water quality monitoring, effluent treatment, aquaculture, chemical processing plants

Pole Type
Single

Connectivity Type
Wired

Display
Digital

Product Type
Single Parameter Transmitter Controller

Operating Temperature
0C to 60C

Working Temperature
0C to 60C

Input
Sensor (selectable parameter: pH / ORP / Conductivity / TDS / DO / Temperature etc.)

Pressure Type
Ambient Pressure

Diameter
Standard panel cutout 96 mm x 96 mm

Application
Industrial

Supply Voltage
230V AC 10%, 50 Hz

Accuracy
0.01 for pH, 2 mV for ORP, 1% F.S. for conductivity/TDS

Dimension (L*W*H)
96 mm x 96 mm x 98 mm

Weight
0.45 kg

Humidity
85% RH (non-condensing)

Storage Temperature
-10C to 70C

Response Time
10 s (sensor dependent)

Data Interface
RS485 (MODBUS RTU protocol)

Backlight
Blue/White backlit LCD

Calibration
Manual/Automatic, 1-point or 2-point depending on parameter

Power Consumption
<10 VA

Enclosure Material
ABS flame-retardant housing

Alarm Output
SPDT relay, programmable high/low set point

Single Parameter Transmitter Controller Trade Information

Minimum Order Quantity
100 Pieces

Payment Terms
Cash Advance (CA)

Delivery Time
10 Days

Main Domestic Market
All India

About Single Parameter Transmitter Controller

Single Parameter Transmitter Controller that our well recognized company proposes is engineered for changing or converting the data come from a sensor into a signal parameter which is thereafter transmitted to a controller. Owing to its reliable measurement, excellent performance, high efficiency and easy functions, it is highly lauded and demanded by clients of various industries. In addition to this, Single Parameter Transmitter Controller can get in various dimensions, configurations, and models at cost-effective prices.

Advanced Calibration Modes

This transmitter controller supports manual or automatic calibration, making it flexible for various sensor types and operational requirements. One or two-point calibration options ensure accurate readings, crucial for precise process control in industrial applications. The calibration procedure is user-friendly, allowing maintenance personnel to adjust the device easily according to sensor specifications.

Robust Alarm and Output Options

Equipped with SPDT relay alarms, the device lets users program high or low set points for immediate response to parameter deviations. Analog 4-20 mA and digital RS485 outputs (MODBUS RTU protocol) enable seamless integration with supervisory systems, ensuring quick and reliable communication for control and monitoring.

Industrial-Grade Durability

Featuring an ABS flame-retardant housing and IP65 front panel protection, the controller withstands harsh industrial environments. Its operating temperature range (0C to 60C), low power consumption, and panel-mountable design guarantee reliable performance and longevity, making it an optimal choice for a variety of industrial installations.

FAQ's of Single Parameter Transmitter Controller:

Q: How do I calibrate the Single Parameter Transmitter Controller for different sensors?

A: Calibration can be performed either manually or automatically, with the choice of one-point or two-point calibration depending on the sensor type. The process involves using standard solutions relevant to the parameter being measured (such as buffer solutions for pH or standard solutions for ORP or conductivity) and following the onscreen instructions to adjust the readings.

Q: What types of sensors are compatible with this transmitter controller?

A: The controller accommodates electrochemical, electrode-based contact sensors designed for measuring pH, ORP, conductivity, TDS, dissolved oxygen (DO), and temperature. Users can select the desired sensor type during setup to match specific measurement applications.

Q: When should I use the alarm output feature and how does it benefit operations?

A: The programmable SPDT relay alarm output can be used to trigger responses when the monitored parameter goes above or below pre-set high or low set points. This feature enables real-time intervention, helping maintain process quality and safety by alerting operators or activating corrective equipment automatically.

Q: Where can this transmitter controller be installed?

A: Designed for industrial environments, the controller is panel-mountable with a standard 96 mm x 96 mm cutout. The IP65-rated front panel and ABS flame-retardant enclosure allow installation in water treatment plants, chemical processing, aquaculture facilities, and other challenging settings where water quality monitoring is essential.

Q: What is the process for integrating the controller with external systems?

A: Integration with external systems is facilitated by analog 4-20 mA signal output and RS485 data interface using MODBUS RTU protocol. This ensures compatibility with a wide range of industrial control systems, SCADA, and data acquisition platforms for seamless data transfer and remote management.

Q: How does the device ensure reliable results in industrial environments?

A: With high measurement accuracy (0.01 for pH, 2 mV for ORP, 1% F.S. for conductivity/TDS), IP65 protection, wide operating temperature range, and flame-retardant housing, the device delivers dependable performance even in demanding conditions. The backlit LCD ensures clear visibility in low-light areas as well.
